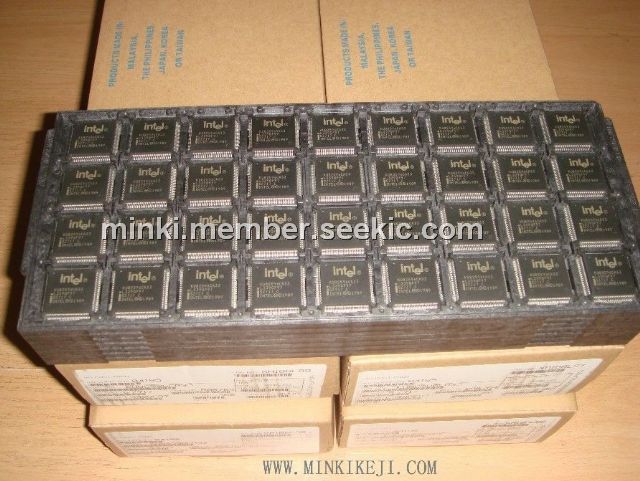

Product Summary
The KU82596CA33 is an intelligent, high-performance 32-bit Local Area Network coprocessor. The KU82596CA33 implements the CSMA/CD access method and can be configured to support all existing IEEE
802.3 standards-TYPEs 10BASE-T, 10BASE5, 10BASE2, 1BASE5, and 10BROAD36. It can also be used to implement the proposed standard TYPE 10BASE-F. The KU82596CA33 performs high-level commands, command chaining, and interprocessor communications via shared memory, thus relieving the host CPU of many tasks associated with network control.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)Case Temperature under Bias: -65℃ to +110℃; (3)Supply Voltage with Respect to VSS: -0.5V to +6.5V; (4)Voltage on Other Pins: -0.5V to VCC+ 0.5V.
Features
Features: (1)Performs Complete CSMA/CD Medium Access Control (MAC) Functions; (2)Supports Industry Standard LANs; (3)82586 Software Compatible; (4)Self-Test Diagnostics; (5)Configurable Initialization Root for Data Structures; (6)High-Speed, 5V, CHMOS** IV Technology; (7)132-Pin Plastic Quad Flat Pack (PQFP) and PGA Package; (8)32-Bit Bus Master Interface.

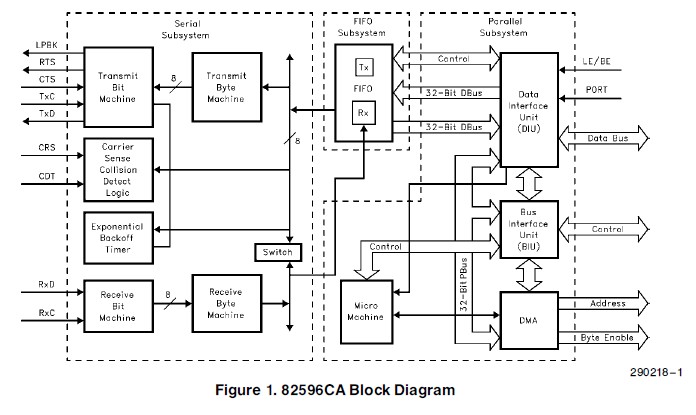

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() KU82596CA33SZ717 |
![]() Intel |
![]() IC LAN COPROC 5V 33MHZ 132-QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
![]() KU82596CA25SZ716 |
![]() |
![]() IC LAN COPROC 5V 25MHZ 132-QFP |
![]() Data Sheet |
![]() Negotiable |
|
|||||||||||||||
![]() |
![]() KU82596CA33SZ717 |
![]() Intel |
![]() IC LAN COPROC 5V 33MHZ 132-QFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
![]() KU82596DX25SZ714 |
![]() |
![]() IC LAN COPROC 5V 25MHZ 132-QFP |
![]() Data Sheet |
![]()
|
|
|||||||||||||||
![]() KU82596DX33SZ715 |
![]() Intel |
![]() IC LAN COPROC 5V 33MHZ 132-QFP |
![]() Data Sheet |
![]() Negotiable |
|
|||||||||||||||
![]() |
![]() KU82596SX20SZ713 |
![]() Intel |
![]() IC LAN COPROC 5V 20MHZ 132-QFP |
![]() Data Sheet |
![]() Negotiable |
|
