Product Summary

The CY7C1312BV18-200BZXC is a 1.8V Synchronous Pipelined SRAM. The CY7C1312BV18-200BZXC consists of two separate ports to access the memory array. The read port has dedicated Data Outputs to support read operations and the Write Port has dedicated Data Inputs to support write operations. The CY7C1312BV18-200BZXC has separate data inputs and data outputs to completely eliminate the need to “turn-around”the data bus required with common IO devices.

Parametrics

CY7C1312BV18-200BZXC absolute maximum ratings: (1)Storage Temperature:–65℃ to +150℃; (2)Ambient Temperature with Power Applied:–55℃ to +125℃; (3)Supply Voltage on VDD Relative to GND:–0.5V to +2.9V; (4)Supply Voltage on VDDQ Relative to GND:–0.5V to +VDD; (5)DC Voltage Applied to Outputs in High Z State:–0.5V to VDDQ + 0.3V; (6)DC Input Voltage:–0.5V to VDD + 0.3V; (7)Current into Outputs (LOW):20 mA; (8)Static Discharge Voltage:> 2001V(MIL-STD-883, Method 3015); (9)Latch up Current: > 200 mA.

Features

CY7C1312BV18-200BZXC features: (1)Two input clocks (K and K) for precise DDR timing; (2)SRAM uses rising edges only; (3)Two input clocks for output data (C and C) to minimize clock; (4)skew and flight time mismatches; (5)Echo clocks (CQ and CQ) simplify data capture in high speed systems; (6)Single multiplexed address input bus latches address inputs for both read and write ports; (7)Separate Port Selects for depth expansion; (8)Synchronous internally self-timed writes; (9)Available in x 8, x 9, x 18, and x 36 configurations; (10)Full data coherency, providing most current data; (11)Core VDD = 1.8V (±0.1V); I/O VDDQ = 1.4V to VDD; (12)Available in 165 ball FBGA package (13 x 15 x 1.4 mm); (13)Offered in both Pb-free and non-Pb-free packages; (14)Variable drive HSTL output buffers; (15)JTAG 1149.1 compatible test access port; (16)Delay Lock Loop (DLL) for accurate data placement.

Diagrams

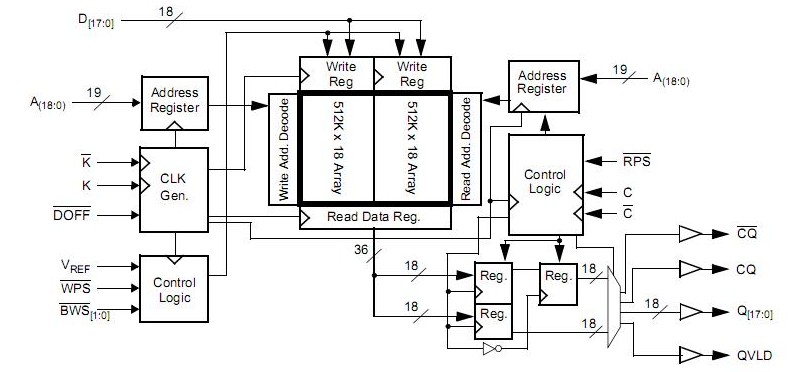

CY7C1312BV18-200BZX block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CY7C1312BV18-200BZXC
CY7C1312BV18-200BZXC
Cypress Semiconductor
SRAM 1Mx18 1.8V DDR II SRAM
Data Sheet
Negotiable
