Product Summary
The AZ4580P-E1 is a monolithic dual low noise operational amplifier. It is specifically designed for audio systems to improve tone control; it can also be used in preamplifier, industrial measurement tools and applications where gain and phase matched channels are mandatory. The IC features internal frequency compensation, low noise, low distortion, high gain and high bandwidth. The AZ4580P-E1 can operate under dual power supply voltage up to ±18V or single power supply up to 36V. It can be used in audio AC-3 decoder system and audio amplifier.
Parametrics
AZ4580P-E1 absolute maximum ratings: (1)Power Supply Voltage: VCC + 20 V, VEE - 20 V; (2)Input Voltage: ±15 V; (3)Differential Input Voltage: ±30 V; (4)Operating Junction Temperature: 150 ℃; (5)Storage Temperature Range: TSTG -65 to 150 ℃; (6)Lead Temperature (Soldering 10s): 260℃; (7)Power Dissipation (TA=25℃): TSSOP-8, 400mW; SOIC-8, 500 mW; SIP-8, 750 mW; DIP-8, 800 mW.
Features
AZ4580P-E1 features: (1)Large Signal Voltage Gain: 110dB Typical; (2)Low Input Noise Voltage: 0.7 μVRMS (RIAA) Typical; (3)Wide Gain Bandwidth Product: 15 MHz at 10KHz Typical; (4)Low Distortion: 0.0005% Typical; (5)Slew Rate: 7V/μs Typical.

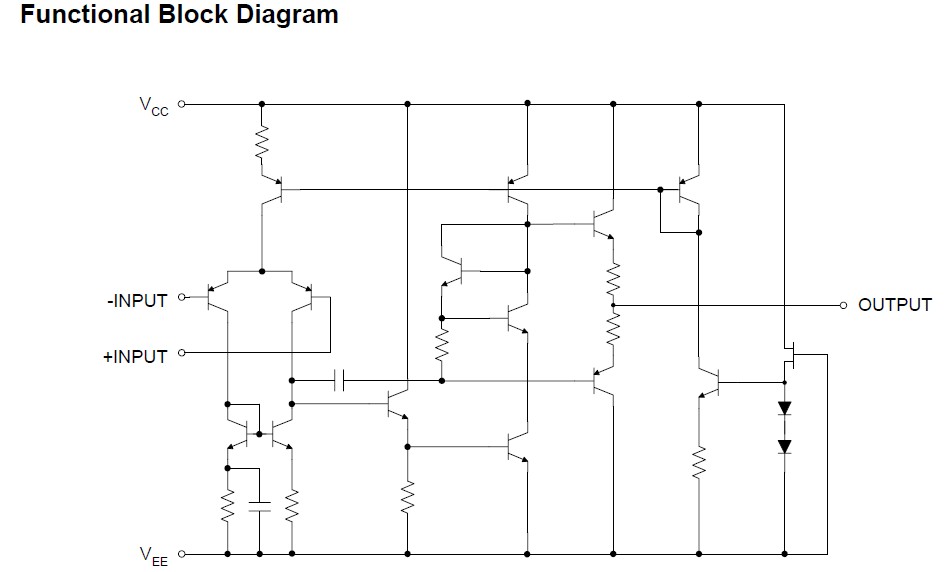

Diagrams
 |
