Product Summary
The IT8712F-A GXS is a Low Pin Count Interface-based highly integrated Super I/O. The IT8712F-A GXS provides the most commonly used legacy Super I/O functionality plus the latest Environment Control initiatives, such as H/W Monitor, Fan Speed Controller and so on.
Parametrics
IT8712F-A GXS absolute maximum ratings: (1)Applied Voltage: -0.5V to 7.0V; (2)Input Voltage (Vi): -0.5V to VCC+0.5V; (3)Output Voltage (Vo): -0.5V to VCC + 0.3V; (4)Operation Temperature (Topt): 0℃ to +70℃; (5)Storage Temperature: -55℃ to +125℃; (6)Power Dissipation: 300mW.
Features
IT8712F-A GXS features: (1)Low Pin Count Interface; (2)ACPI and LANDesk Compliant; (3)Enhanced Hardware Monitor; (4)Fan Speed Controller; (5)SmartGuardian Controller; (6)Two 16C550 UARTs; (7)Smart Card Reader; (8)Floppy Disk Controller; (9)Keyboard Controller; (10)Game Port; (11)Dedicated MIDI Interface.

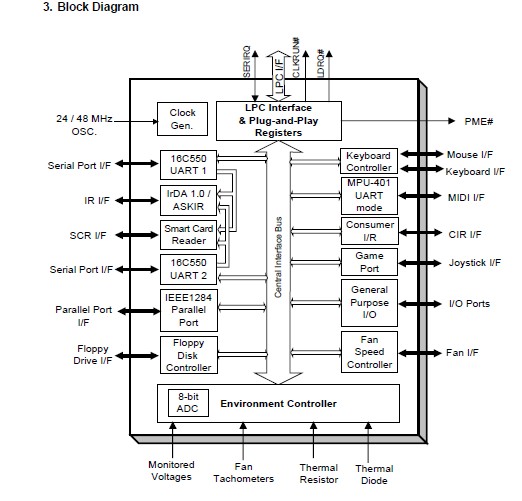

Diagrams
 |
