Product Summary

The BAV199 is a very low leakage SOT-23 diode.

Parametrics

BAV199 absolute maximum ratings: (1)RMS Reverse Voltage VR (RMS): 60V; (2)Forward Continuous Current (Note 1)IFM: 215mA; (3)Repetitive Peak Forward Current IFRM: 500 mA; (4)Peak Repetitive Reverse Voltage VRRM: 85V; (5)Working Peak Reverse Voltage VRWM: 85V; (6)DC Blocking Voltage VR: 85V.

Features

BAV199 features: (1)Surface Mount Package Ideally Suited for Automated Insertion; (2)Very Low Leakage Current; (3)Lead Halogen and Antimony Free, RoHS Compliant Green Device (Notes 3 and 4).

Diagrams

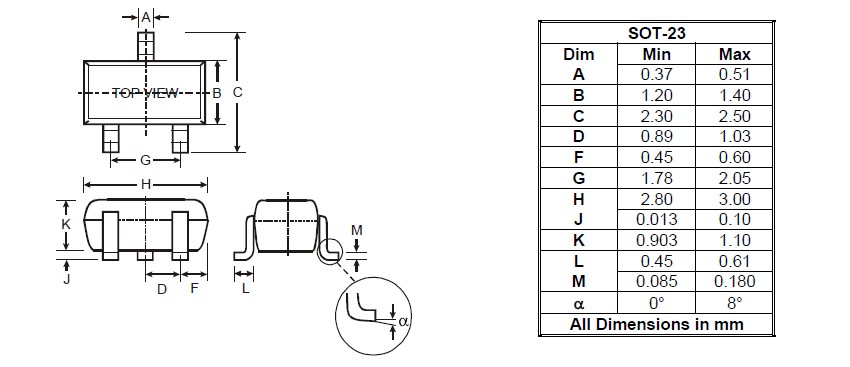

BAV199 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAV199
BAV199

DIODE SWITCH 250MW 85V SOT23-3
