AT24C32N-10SI-2.7

2-wire serial EEPROM, 7.0V, 5.0 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.65 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.65

PartNumber:: AT24C32N-10SI-2.7

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 04+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Abby's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-27

From Other Seller

Part Number:AT24C32N-10SI-2.7
US $0.45 - 0.65
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

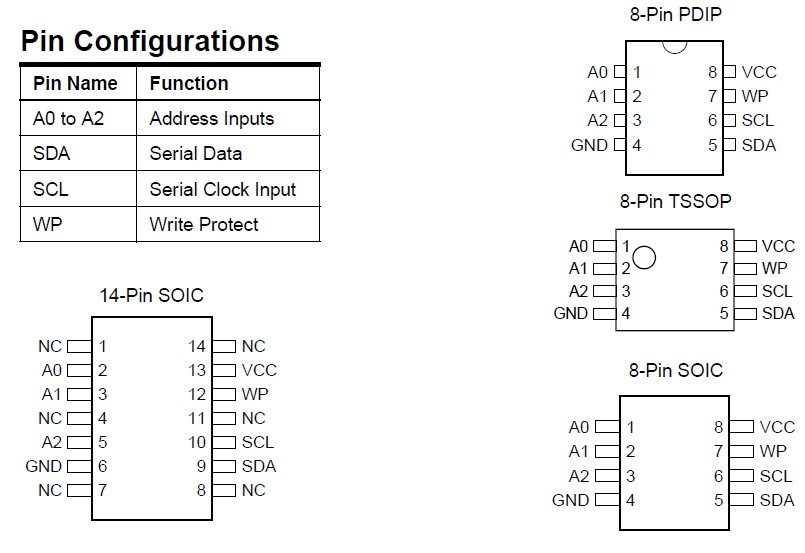

The AT24C32N-10SI-2.7 is a 2-wire serial EEPROM. The AT24C32N-10SI-2.7 provides 32,768/65,536 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096/8192 words of 8 bits each. The AT24C32N-10SI-2.7 cascadable feature allows up to 8 devices to share a common 2- wire bus. The AT24C32N-10SI-2.7 is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C32N-10SI-2.7 is available in space saving 8-pin JEDEC PDIP, 8-pin and 14-pin JEDEC SOIC, 8-pin EIAJ SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to 5.5V) versions.

Parametrics

AT24C32N-10SI-2.7 absolute maximum ratings: (1)Storage Temperature : －65°C to +150°C; (2)Voltage on Any Pin with Respect to Ground : －1.0V to +7.0V; (3)Maximum Operating Voltage: 6.25V; (4)DC Output Current: 5.0 mA; (5)Operating Temperature: －55°C to +125°C.

Features

AT24C32N-10SI-2.7 features: (1)Low-Power Devices (ISB = 2 mA @ 5.5V)Available; (2)Internally Organized 4096 x 8, 8192 x 8; (3)2-Wire Serial Interface; (4)Schmitt Trigger, Filtered Inputs for Noise Suppression; (5)Bidirectional Data Transfer Protocol; (6)100 kHz (1.8V, 2.5V, 2.7V)and 400 kHz (5V)Compatibility; (7)Write Protect Pin for Hardware Data Protection; (8)32-Byte Page Write Mode (Partial Page Writes Allowed); (9)Self-Timed Write Cycle (10 ms max); (10)Automotive Grade and Extended Temperature Devices Available; (11)8-Pin JEDEC PDIP, 8-Pin and 14-Pin JEDEC SOIC, 8-Pin EIAJ SOIC, and 8-pin TSSOP Packages.
