Product Summary
Dedicated to dataline protection, the TPN3021RL provides a triple protection function. The TPN3021 ensures the same protection capability with the same breakdown voltage both in common mode and in differential mode. With a stand-off voltage of 28V and a very low capacitance, the TPN3021 is able to protecthigh-speed interfaces such as T1/E1 interface.
Parametrics
TPN3021 absolute maximum ratings: (1)Ipp Peak pulse current: 10/1000 μs, 30A; 8/20 μs, 150A; (2)Tstg Storage temperature range: - 40 to + 150℃; (3)Tj Maximum junction temperature: 150℃; (4)TL Maximum lead temperature for soldering during 10s 260℃.
Features
TPN3021 features: (1)Triplecrowbar protection; (2)Peakpulsecurrent: IPP = 30A, 10/1000μs; (3)Verylow capacitance: C = 30 pF; (4)Protects high-speed line drivers/receivers.

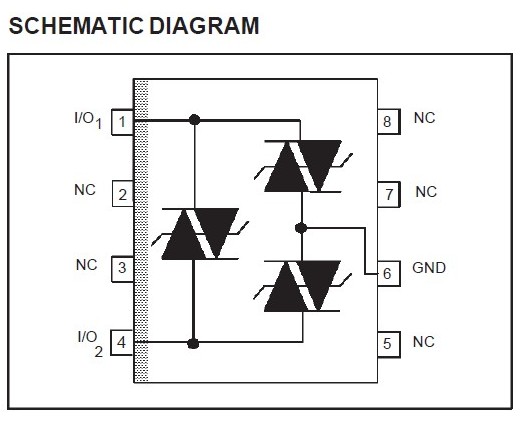

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPN3021 |
STMicroelectronics |
TVS Diode Arrays 38V 300mA Triple |
Data Sheet |
|
|
||||||||||||
|
TPN3021RL |
STMicroelectronics |
TVS Diode Arrays 38V 300mA Triple |
Data Sheet |
|
|
||||||||||||
