Product Summary

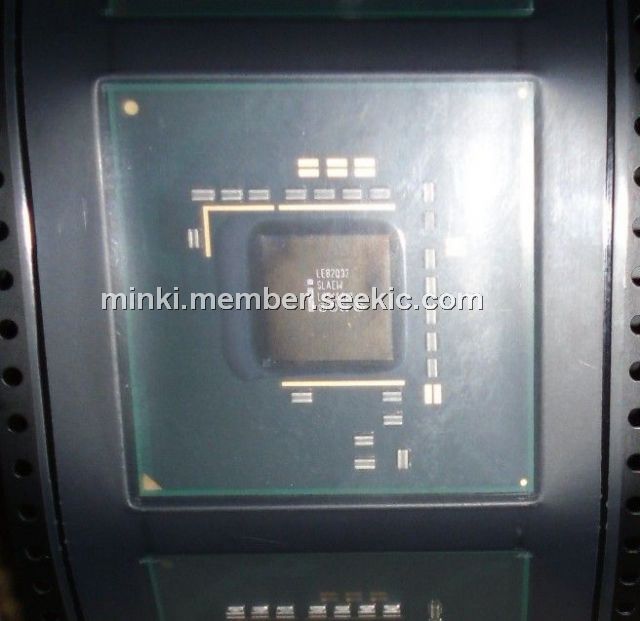

The LE82Q33 SLAEW GMCH is part of the Intel Q35 Express chipset. The Intel 3 Series Chipset is designed for use with the Intel Core Duo desktop processor and Intel Core Quad processor based platforms. Each chipset contains two components: GMCH (or MCH) for the host bridge and I/O Controller Hub 9 (ICH9) for the I/O subsystem.
Parametrics
LE82Q33 SLAEW absolute maximum ratings: (1)Tstorage Storage Temperature: -55 to 150 ℃; (2)VCC, 1.25 V Core Supply Voltage with respect to VSS: -0.3 to 1.375 V; (3)VTT_FSB System Bus Input Voltage with respect to VSS: -0.3 to 1.32 V; (4)VCCA_HPLL, 1.25 V Host PLL Analog Supply Voltage with respect to VSS: -0.3 to 1.375 V; (5)VCC_DDR, 1.8 V DDR2 / 1.5 V DDR3 System Memory Supply; (6)Voltage with respect to VSS: -0.3 to 4.0 V.
Features
LE82Q33 SLAEW features: (1)Supports Intel Core Duo desktop processor; (2)Supports IntelCore Quad desktop processor; (3)800/1067/1333 MT/s (200/266/333 MHz) FSB; (4)Hyper-Threading Technology (HT Technology); (5)FSB Dynamic Bus Inversion (DBI); (6)36-bit host bus addressing; (7)12-deep In-Order Queue; (8)1-deep Defer Queue; (9)GTL+ bus driver with integrated GTL termination resistors; (10)Supports cache Line Size of 64 bytes; (11)One or two channels (each channel consisting of 64 data lines); (12)Single or Dual Channel memory organization; (13)DDR2-800/667 frequencies; (14)Unbuffered, non-ECC DIMMs only; (15)Supports 1-Gb, 512-Mb DDR2 or DDR3 technologies for x8 and x16 devices; (16)8 GB maximum memory; (17)Core frequency of 400 MHz; (18)1.6 GP/s pixel rate; (19)High-Quality 3D Setup and Render Engine; (20)High-Quality Texture Engine; (21)3D Graphics Rendering Enhancements; (22)2D Graphics; (23)Video Overlay; (24)Multiple Overlay Functionality.

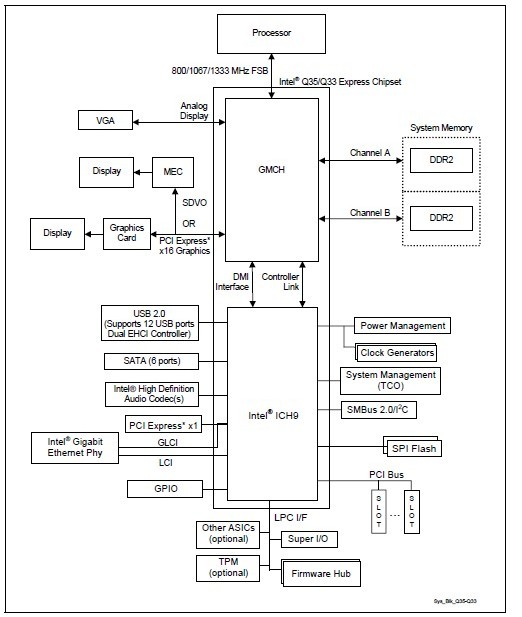

Diagrams
