Product Summary

The 216LQA6AVA12FG is the part number of RS690MC. It is a seventh integrated graphics processor (IGP) that integrates a directX 9.0 complaint 2D/3D graphics core and a system controller in a single chip. It supports the AMD Athlon 64, Athlon 64 FX, Athlon 64 X2, and sempron processors, including AM2 socket CPUs. All CPUs are supported on both high performance and value platforms. The 216LQA6AVA12FG integrates an ATI Radeon X700-based graphics engine, dual display, a TV encoder, an integrated DIV/HDIM interface, an integrated TMDS controller, and north bridge functionality in a single BGA package. This high level of integration and scalability enables manufactures to offer enthusiast level capabilities and performance while minimizing board space and system cost.

Parametrics

Absolute maximum ratings: (1)Pin VDD-CORE: from 1.14 to 1.26V, the typical value is 1.2V; (2)Pin VDD-18: from 1.71 to 1.89V, the typical value is 1.8V; (3)Pin VDD-HT: from 1.14 to 1.26V, the typical value is 1.2V; (4)Pin VDDR3: from 3.315 to 3.465V, the typical value is 3.3V; (5)Pin VDDA-12: from 1.14 to 1.26V, the typical value is 1.2V; (6)Pin AVDDDL: from 1.71 to 1.89V, the typical value is 1.8V; (7)Pin AVDDQ: from 1.71 to 1.89V, the typical value is 1.8V; (8)Pin AVDD: from 3.135 to 3.465V, the typical value is 3.3V.

Features

Features: (1)CPU Hypertransport interface: supports LDTSTP interface, CPU throttling, and stutter mode; (2)Supports ATI hyper memory; (3)Complaint with the PCI express interface; (4)High flexible PCI express implementation to suit a variety of platform needs; (5)One x4 A-link express ii interface for connection to an AMD Southbridge; (6)Highly optimized 128-bit engine, capable of processing multiple pixels per clock; (7)Hardware acceleration for clear type font rendering; (8)8-bit stencil buffer; (9)Bilinear and trilinear texture lighting.

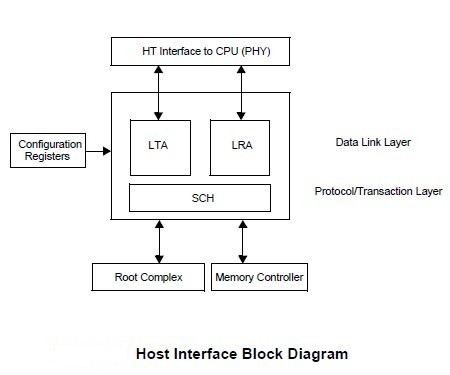

Diagrams
